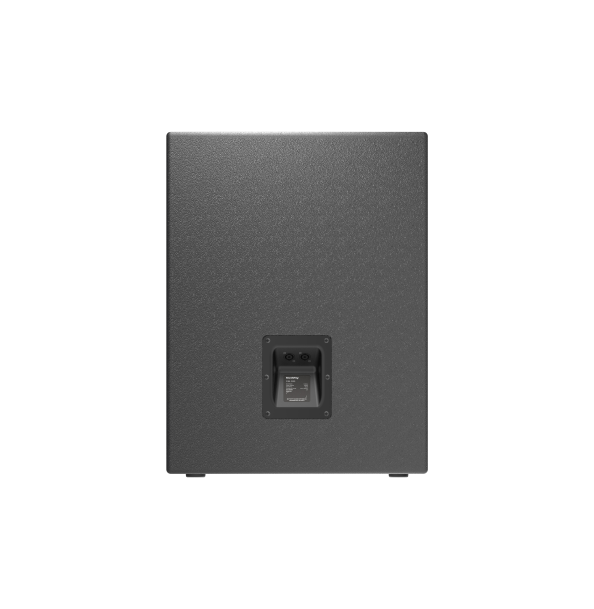

PAL18S
Overview
Features
Specifications:
System: 1 unit bandpass subwoofer
Rated Power: 800W
Maximum Power: 1600W
Nominal Impedance: 8 OHMS
Recommended Amplifier: 1000W-1600W@8 OHMS
Sensitivity (1W@1m): 98dB
Maximum SPL: 125dB@250W (126dB@500W)
Frequency Range (-6dB): 35Hz-300Hz
Coverage (-6dB): None
Transducers: Ferrite LF Driver 18″ (460mm dia. 220mm magnet 100mm voice coil)×1
Crossover Model: Passive
Connector: SPEAKON NL4×2 (PIN1+POS. PIN1-NEG)
Cabinet Material: 18mm (0.70″) high-quality plywood
Color: The default is black, other colors can be customized as required.
Cabinet Size: W535*D715*H700mm
Package Size: W605*D785*H775mm
Weight: 47.5kg
Recommended Applications: Suitable for multi-function hall, auditorium, lecture hall, conference room and other fixed installation
