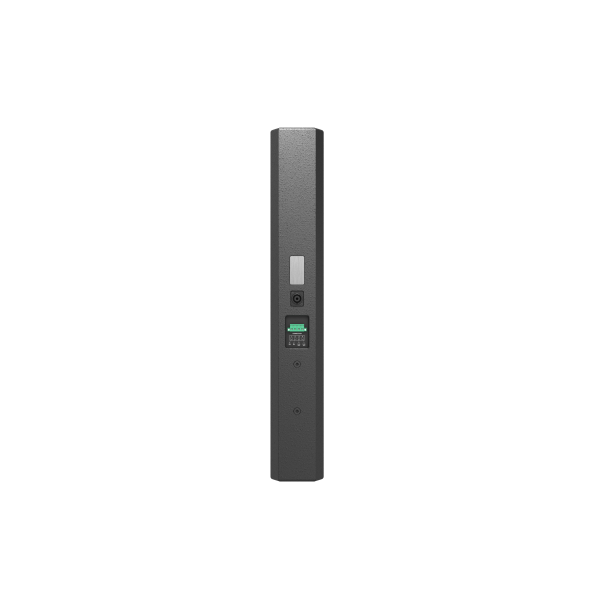

PAL83
Overview
Features
Specifications:
System: 8-unit full range infinite baffle
Rated Power: 250W
Maximum Power: 500W
Nominal Impedance: 4 OHMS
Recommended Amplifier: 300W-500W@4 OHMS
Sensitivity (1W@1m): 99dB
Maximum SPL: 123dB@250W (126dB@500W)
Frequency Range (-10dB): 130Hz-18KHz
Coverage (-6dB): 90°H×30°V
Transducers: Ferrite LF Driver 3″ (82mm dia. 70mm magnet 20mm voice coil)×8
Crossover Model: Passive
Connector: SPEAKON NL4×1 (PIN1+/2+POS. PIN1-/2-NEG)
Cabinet Material: 15mm (0.60″) + 12mm (0.47″) high-quality plywood
Color: The default is black, other colors can be customized as required.
Cabinet Size: W115*D135*H755mm
Package Size: W185*D205*H830mm
Weight: 6.90kg
Recommended Applications: Suitable for multi-function hall, command center, small band performance, small conference room, electronic classroom and other fixed installation
