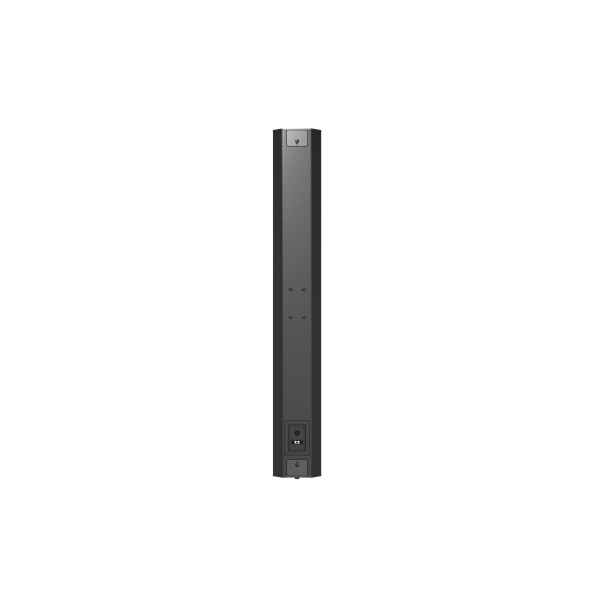

PAL66
Overview
Features
Specifications:
System: 4-way 8-unit bass reflex
Rated Power: 600W
Maximum Power: 1200W
Nominal Impedance: 4 OHMS
Recommended Amplifier: 800W-1200W@4 OHMS
Sensitivity (1W@1m): 100dB
Maximum SPL: 128dB@600W(131dB@1200W)
Frequency Range (-6dB): 80Hz-20KHz
Coverage (-6dB): H100°×V(30°~40°) , vertical coverage 10°adjustable
Transducers:
Neodymium MF, LF Driver 6.5″ (165mm dia. 75mm magnet 38mm voice coil)×6
Neodymium HF Driver 1.4″ (70mm magnet 36mm voice coil)×2
Crossover Model: Passive
Connector:SPEAKON NL4×1 (PIN1+/2+POS. PIN1-/2-NEG); 2PIN connecting terminal ×1
Cabinet Material: 18mm (0.70″) + 15mm (0.60″) high-quality plywood
Color: The default is black, other colors can be customized as required.
Cabinet Size: W1370*D191*H220mm
Package Size: W1520*D290*H270mm
Weight: 19.55kg
Recommended Applications: Suitable for multi-function hall, command center, small band performance, small conference room, electronic classroom and other fixed installation
