PAL15S
Overview
Features
Specifications:
System: 1 unit bandpass subwoofer
Rated Power: 500W
Maximum Power: 1000W
Nominal Impedance: 8 OHMS
Recommended Amplifier: 800W-1000W@8 OHMS
Sensitivity (1W@1m): 97dB
Maximum SPL: 124dB@250W (127dB@500W)
Frequency Range (-6dB): 40Hz-400Hz
Coverage (-6dB): None
Transducers: Ferrite LF Driver 15″ (380mm dia. 220mm magnet 100mm voice coil)×1
Crossover Model: Passive

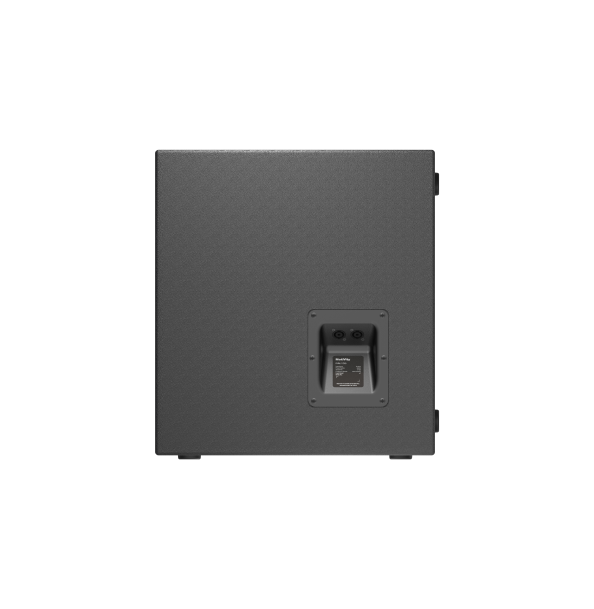

Connector: SPEAKON NL4×2 (PIN1+POS. PIN1-NEG)
Cabinet Material: 18mm (0.70″) high-quality plywood
Color: The default is black, other colors can be customized as required.
Cabinet Size: W490*D650*H535mm
Package Size: W560*D720*H610mm
Weight: 38.6kg
Recommended Applications: Suitable for multi-function hall, auditorium, lecture hall, conference room and other fixed installation
