Specifications:

System: 2-way 2-unit front bass reflex

Rated Power: 200W

Maximum Power: 400W

Peak Power: 800W

Nominal Impedance: 8 OHMS

Recommended Amplifier: 300W-400W@8 OHMS

Sensitivity (1W@1m): 94dB

Maximum SPL: 117dB@200w (125dB@800w)

Frequency Range (-6dB): 72Hz-20KHz

Coverage (-6dB): 90°H×40°V

Transducers: Ferrite HF Driver 1.3″ (34mm voice coil 90 Ferrite)×1

Ferrite LF Driver 8″ (50mm voice coil 140 Ferrite)×1

Crossover Model: Passive

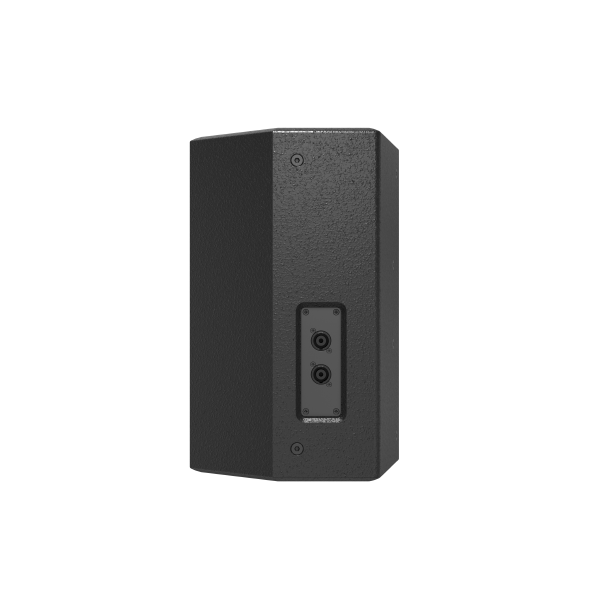

Connector: SPEAKON NL4×2 (PIN1+/2+POS. PIN1-/2-NEG)

Cabinet Material: 15mm (0.6″) high-quality MDF

Color: The default is black eco-friendly water-based point coating

Cabinet Size: W268*D275*H420mm

Weigh : 10.2 kg

Recommended Applications: Suitable for multi-function hall, auditorium, lecture hall, conference room KTV, bar, and other fixed installation
