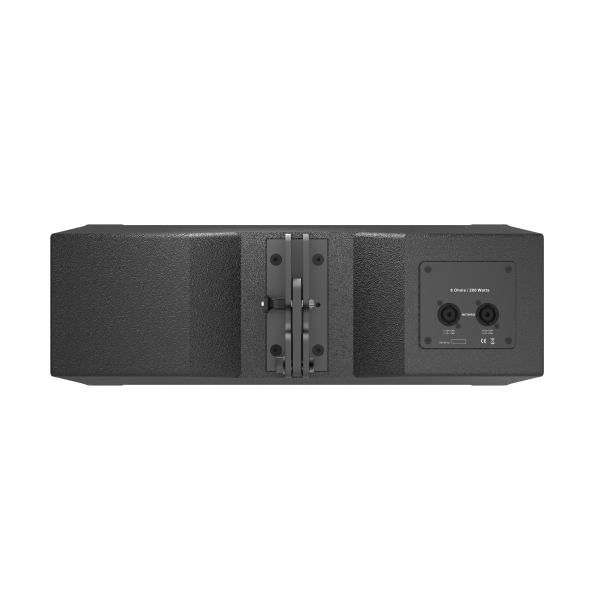

GLA206
Overview
Features
Specifications:
System: 2-way 3-unit bass reflex
Rated Power: 200W
Music Power: 400W
Peak Power: 800W
Nominal Impedance: 8 OHMS
Sensitivity (1W@1m): 97dB
Maximum SPL (Pmax@1m): 120dB@200W (126dB@800W)
Frequency Range(-10 dB): 63Hz-20KHz
Coverage (-6dB): Single array module is 80ºH*7ºV (Note: The vertical coverage angle of the line array varies depending on the degree and curvature of the array.)
Adjustable Angle: 0°～ 10 °, Unit Adjustable Angle1 °
Recommended Number of Line Array: ≥4pcs
Rated Parallel Number: ≤2pcs
Transducers: Ferrite LF Driver 6.5″ (38mm voice coil 100 Ferrite)×2
Ferrite HF Driver 1.7″ (44mm voice coil 115 Ferrite)×1, 1″ Horn
Crossover Model: Passive Frequency
Connector: SPEAKON NL4×2 Passive: PIN1+/2+=POS. PIN1-/2-=NEG.
Cabinet Material: 15mm (0.6″) high-quality plywood
Suspension Hardware: Professional suspension fixture of adjustable angle
Color: The default is polyurea coating, other colors can be customized as required
Cabinet size: W526mm*D314mm*H200mm
Package Size: W385mm*D275mm*H590mm
Weight: 16.6kg/18.3 kg
Recommended Applications: Small outdoor performance amplification, theater, auditorium main amplification
