    LA-208


Overview

Features

●System type:4 unit 2 X-over inverse-phase type subwoofer
●Rated power:300 W
●Maximum power:600W
●Peak power:1200 W
●Impedance:4 OHMS / (16 OHMS) switching impedance
●Sensitivity(1W@1m):106 dB @ 4 OHMS   100 dB @16 OHMS
●Max SPL(Pmax@1m、4 OHMS): 131dB@300w (134dB@600w)
  Max SPL(Pmax@1m、16 OHMS):125dB@300w (128dB@600w)
●Frequency bandwidth:80Hz—18.5KHz
●Directivity(-6dB):single array module is 120º level 8 º vertical
( note:linear array vertical coverage Angle will changed according to the  different degree and curvature of array)
●Adjustable Angle:0°~ 12 °,Unit adjustment Angle 2 °
●Number of proposed groups:≥4
●Rated parallel number:≤4
●Transduction device configuration:low-frequency driver 8″
(200mm unit 50 mm voice coil)×2  high-frequency driver  1.3″
(34mm voice coil)×2
●High frequency waveguide horn: 1″(25 mm throat)×2
●X-over Mode:inactive mode

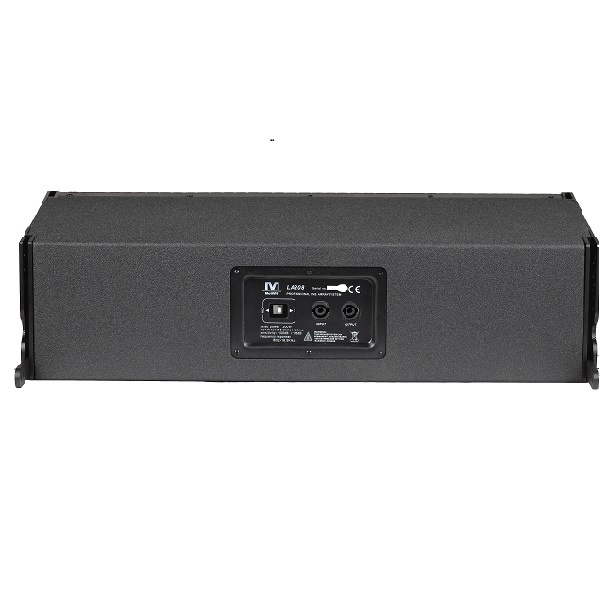

●Connector: SPEAKON NL4×2  PIN1+/2+POS.  PIN1-/2-NEG.
●Material:15mm(0.6″)Birch plywood

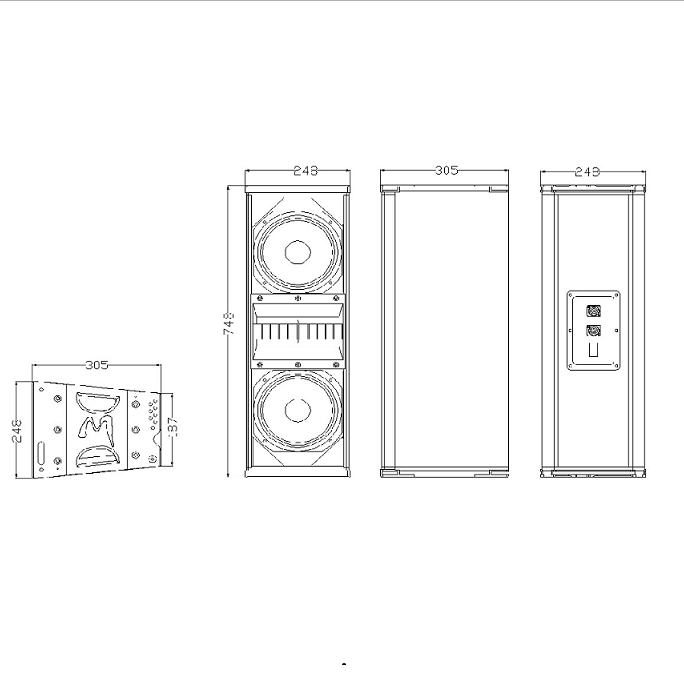

●Dimension:W748 mm*D 305mm*H248mm(187mm)
●Weight  :24 kg
