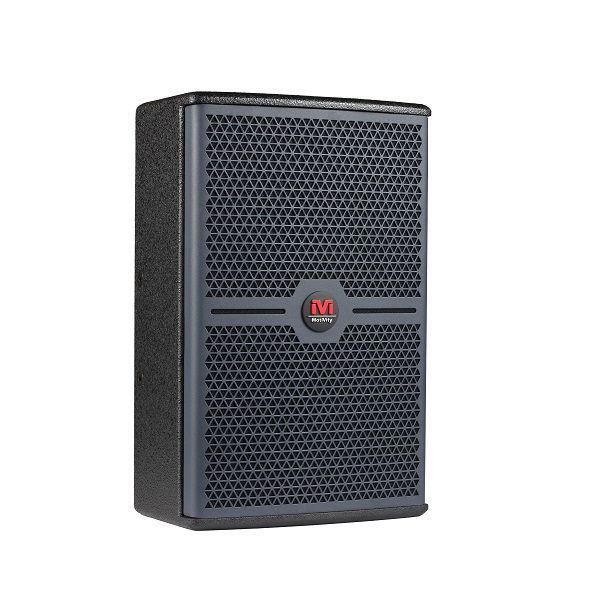

    HM-8

Overview

Features

●System type：2 unit 2 X-over inverse-phase type
●Rated power：150W
●Maximum power：300W
●Impedance：8 OHMS
●Sensitivity(1W@1m)：94dB
●Max SPL：116dB@150w(119dB@300w)
●Frequency bandwidth(-6dB)：75Hz—20KHz
●Directivity(-6dB)：90°H×90°V
●Transduction device configuration：ferrite low-frequency driver8″(200mm unit 50mm voice coil)×1；ferrite high-frequency driver 1″(25 mm voice coil)×1

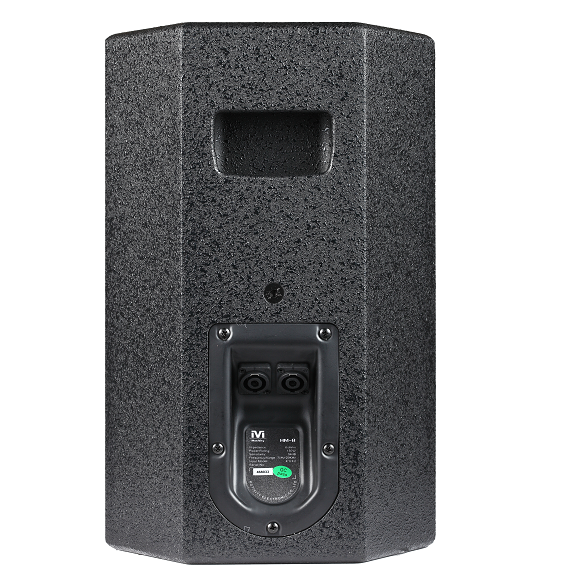

●Connector： SPEAKON NL4×2 (PIN1+/2+POS.  PIN1-/2-NEG)
●Material ：12mm(0.47″)MDF
●Dimension ：W270*D250*H420mm.
●Weight：10.2 kg
